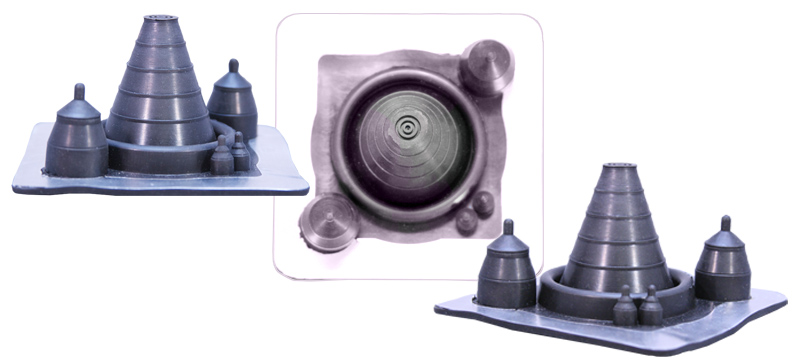

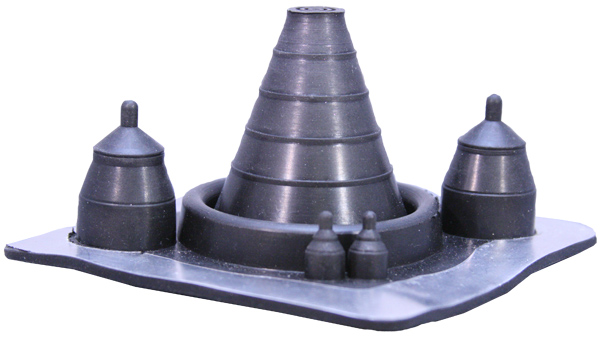

Solar Multi-Port Metal Roof Pipe Flashing
MasterFlash®
$19.60
Write a Review
MasterFlash®
Solar Multi-Port Metal Roof Pipe Flashing
Fits Pipe Sizes:
0” - 1-15/16” (0 - 49 mm)
Large Ports X 2
0" - ⅜” (0.9525 mm) pipe / cable
Small Ports X 2
0" - ¾” (20 mm) pipe / cable
Base Dimensions:
4½" X 4½" (114mm X 114mm)
Features:
- Simple solution to flashing a penetration through a metal roof.
- Comes labeled with its corresponding diameter.
- Is marked with dimensions to allow for easy sizing to fit each individual application.
- Aluminum panel allows the pipe boot flashing to conform to any panel configuration or roof pitch.
- Available in black or grey EPDM or high temp grey silicone, which are both resistant to ultraviolet rays, cracking & weathering.
EPDM and SILICONE Specifications
|
Test Type |
EPDM | SILICONE |
|
ADVANCED OZONE RESISTANCE tested to... |
70 hour @ 500pphm |
70 hour @ 500pphm |
|
HIGH TEMPERATURE RESISTANCE Tested to: Intermittent Continuous |
+135°C (+275°F) +100°C (+212°F) |
+260°C (+500°F) +225°C (+437°F) |
| LOW TEMPERATURE RESISTANCE tested to... | -55°C (-67°F) | -74°C (-101°F) |
|
COMPRESSION SET minimum... |
25% |
50% |
Features:
- Simple solution to flashing a penetration through a metal roof.
- Comes labeled with its corresponding diameter.
- Is marked with dimensions to allow for easy sizing to fit each individual application.
- Aluminum panel allows the pipe boot flashing to conform to any panel configuration or roof pitch.
- Available in black or grey EPDM or orange silicone, which are both resistant to ultraviolet rays, cracking & weathering.
20 Year Warranty offered by Manufacturer
